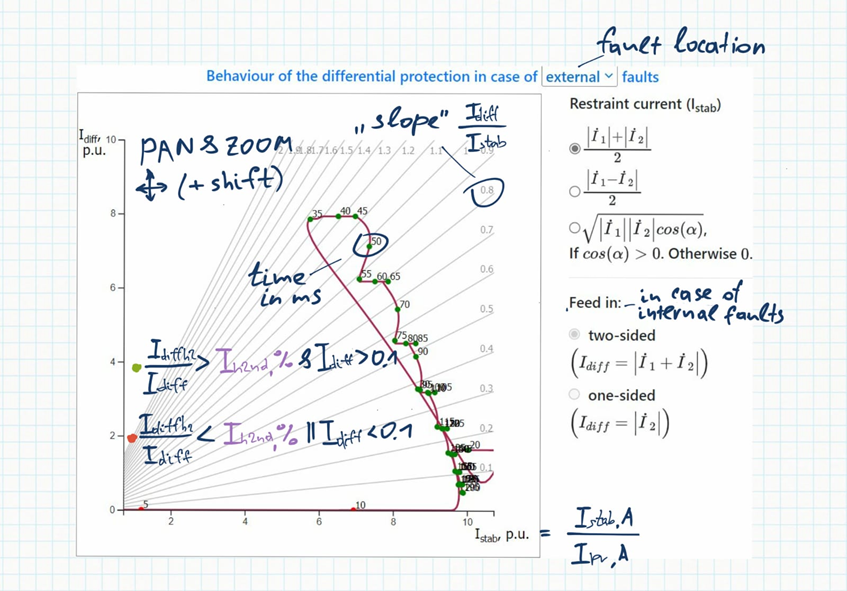

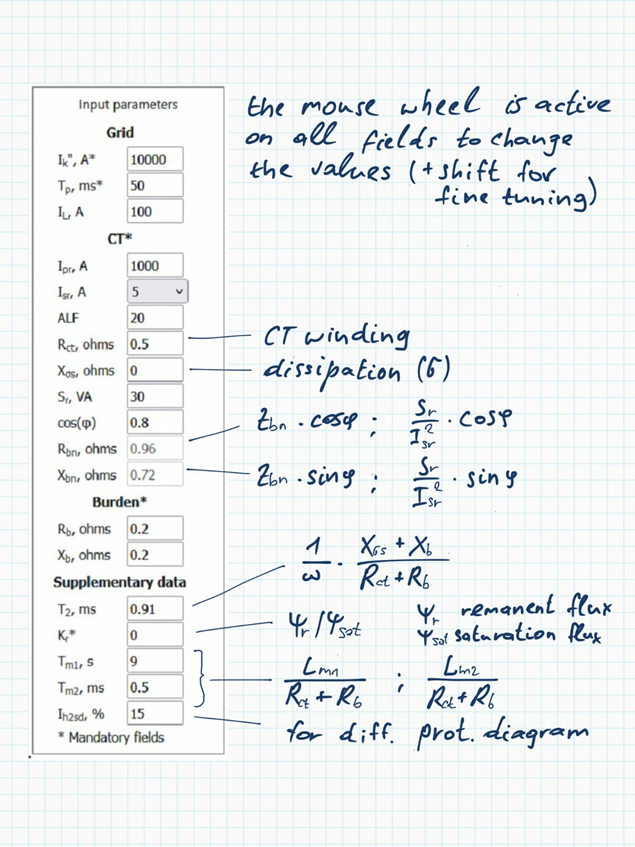

SATURATION ANALYSIS of CT 16.7 Hz

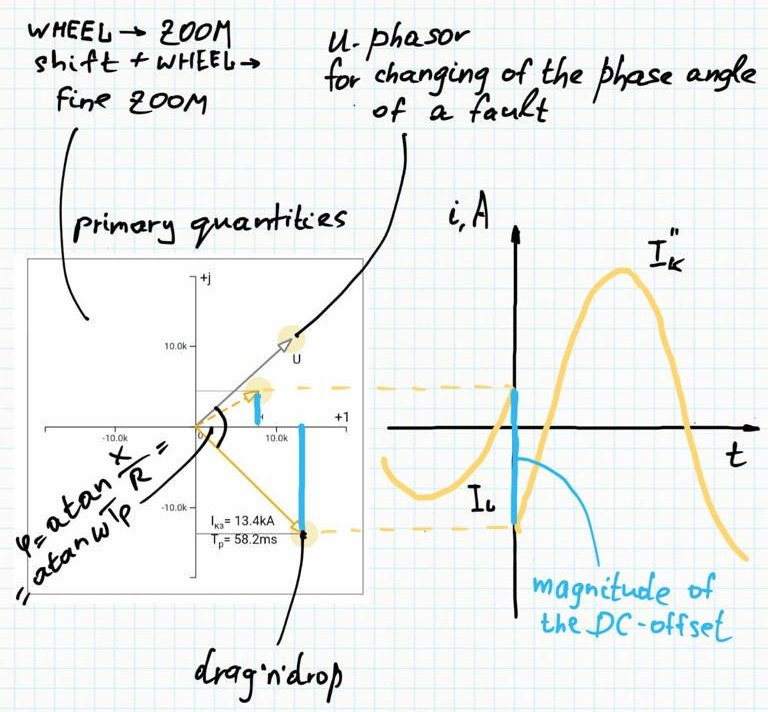

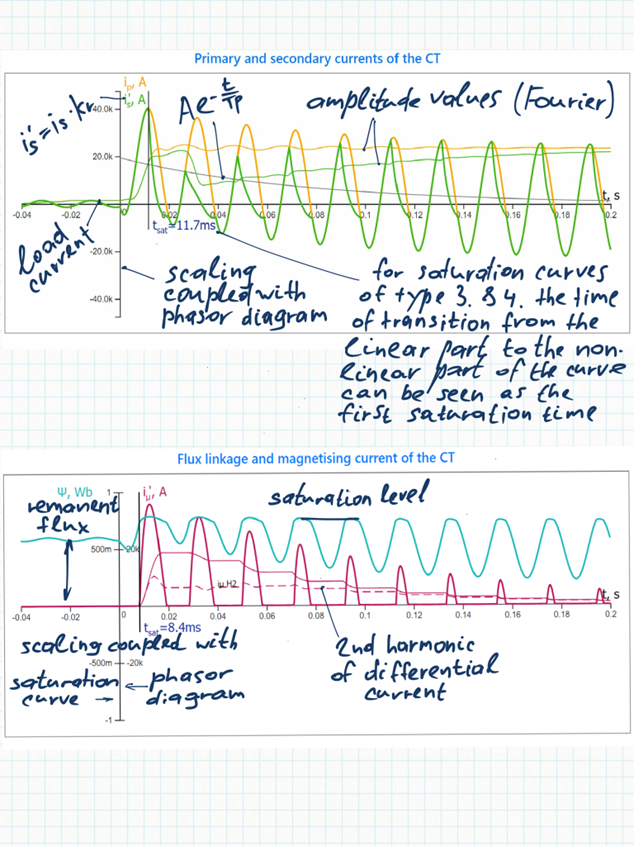

Primary quantities

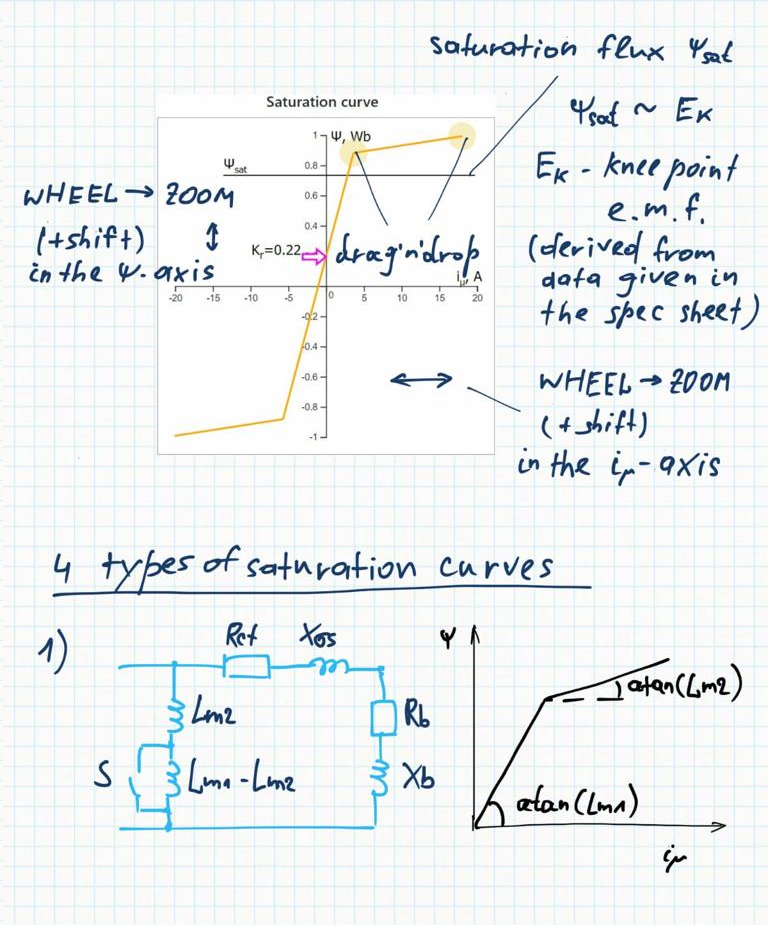

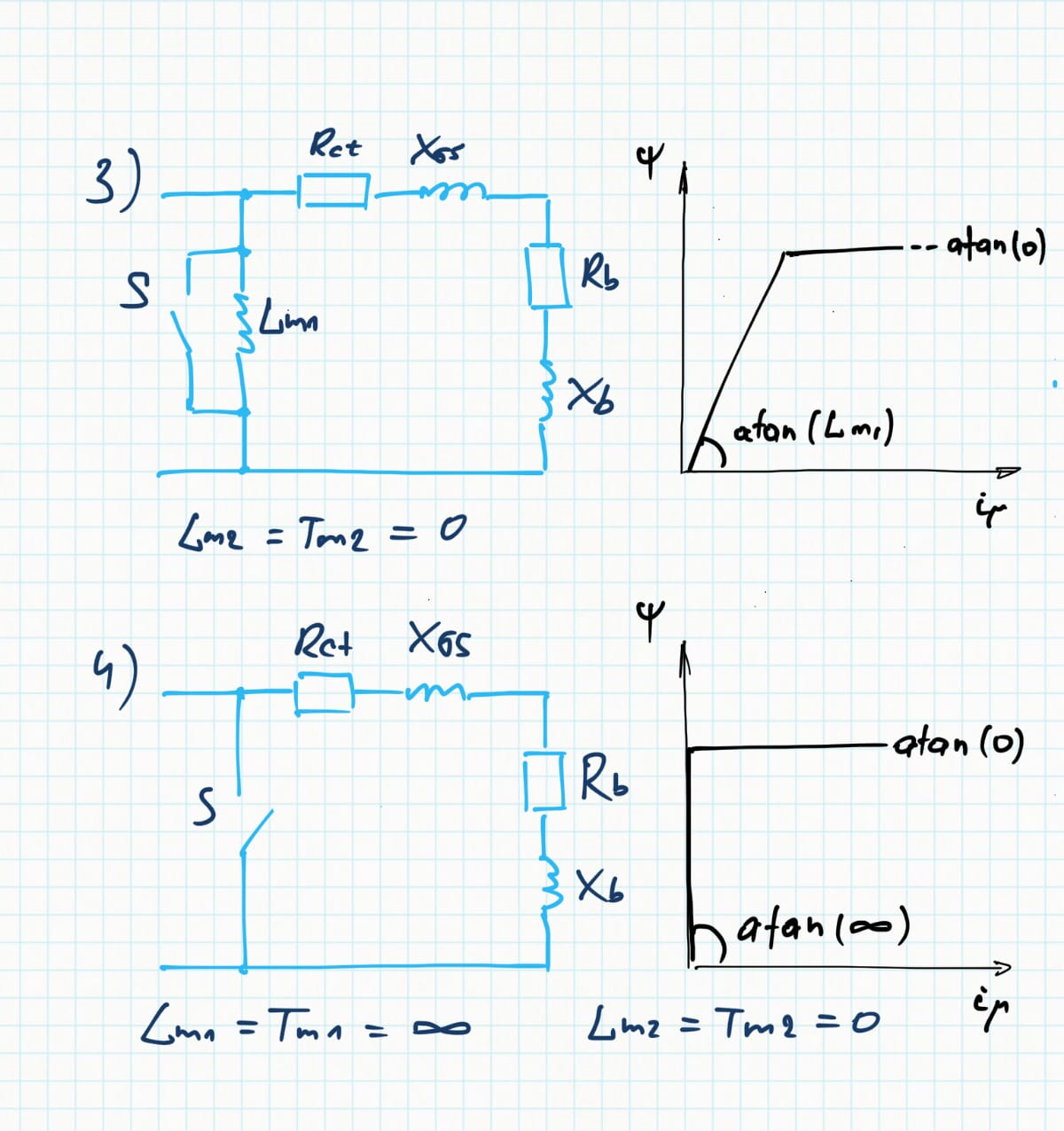

Saturation curve
Restraint current (Istab)

\( \frac{\left|\dot{I}_1\right| + \left|\dot{I}_2\right|}{2} \)

\( \frac{\left|\dot{I}_1 - \dot{I}_2\right|}{2} \)

\( \sqrt{\left|\dot{I}_1\right| \left|\dot{I}_2\right| cos(\alpha)} \),
If \(cos(\alpha)>0\). Otherwise \(0\).

Feed in:

two-sided \( \left( I_{diff} = \left|\dot{I}_1+\dot{I}_2\right| \right) \)

one-sided
\( \left( I_{diff} = \left|\dot{I}_2\right| \right) \)
